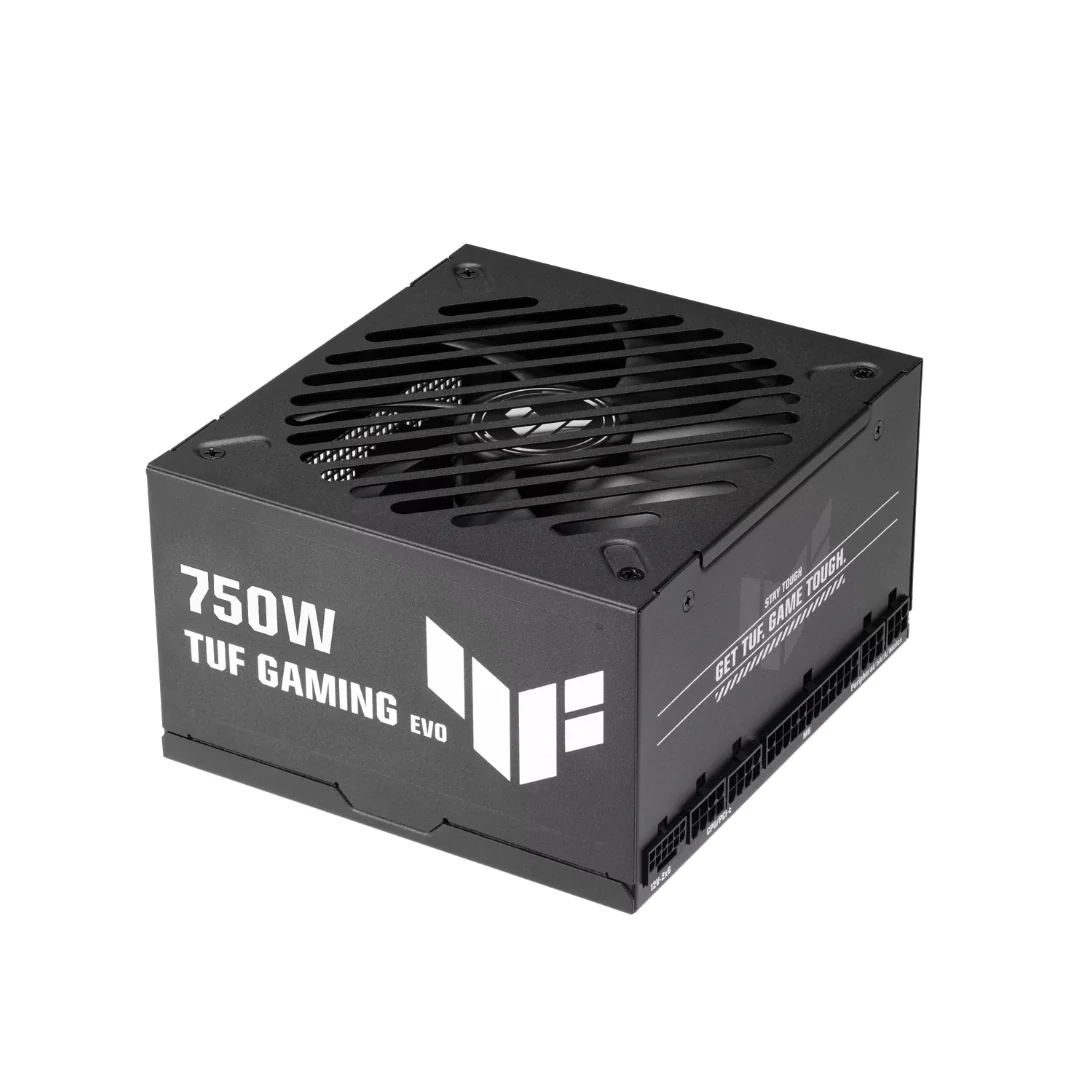

Model: TUF-GAMING-750G-EVO
Intel Form Factor: ATX12V
PFC Type: Active PFC
ATX Standard: ATX 3.1
Dimensions: 140 x 150 x 86 mm
Efficiency: 80Plus Gold
MTBF: >120,000 hrs @ 40°C
Protection Features: OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials: ROHS
AC Input Range: 100-240Vac
DC Output Voltage: +3.3V +5V +12V -12V +5Vsb
Maximum Load: 20A 20A 62.5A 0.3A 3A
Combined Load: 110W 110W 750W 3.6W 15W
Total Output: 750W
Cable Connectors:
MB 20+4pin x 1
CPU 4+4pin x 2
PCI-E 16pin x 1 (12V-2x6)
PCI-E 6+2pin x 2
SATA x 4
PERIPHERAL x 2
Package Contents:
Power Cord x 1
Motherboard Power cable x 1 (610mm)
CPU 1-to-2 Cable x 1 (650mm+100mm)
PCI-E Gen 5.1 Cable (16-pin-to-16-pin) x 1 (500mm)
PCI-E 1-to-2 Cable (8-pin-to-6+2pin*2) x 1 (500+100mm)
SATA & Peripheral 1-to-2+1 Cable x 2 (400+120+120mm)
TUF Gaming Cable Tie x 3
User Manual x 1
Weight: 1.32 kg
