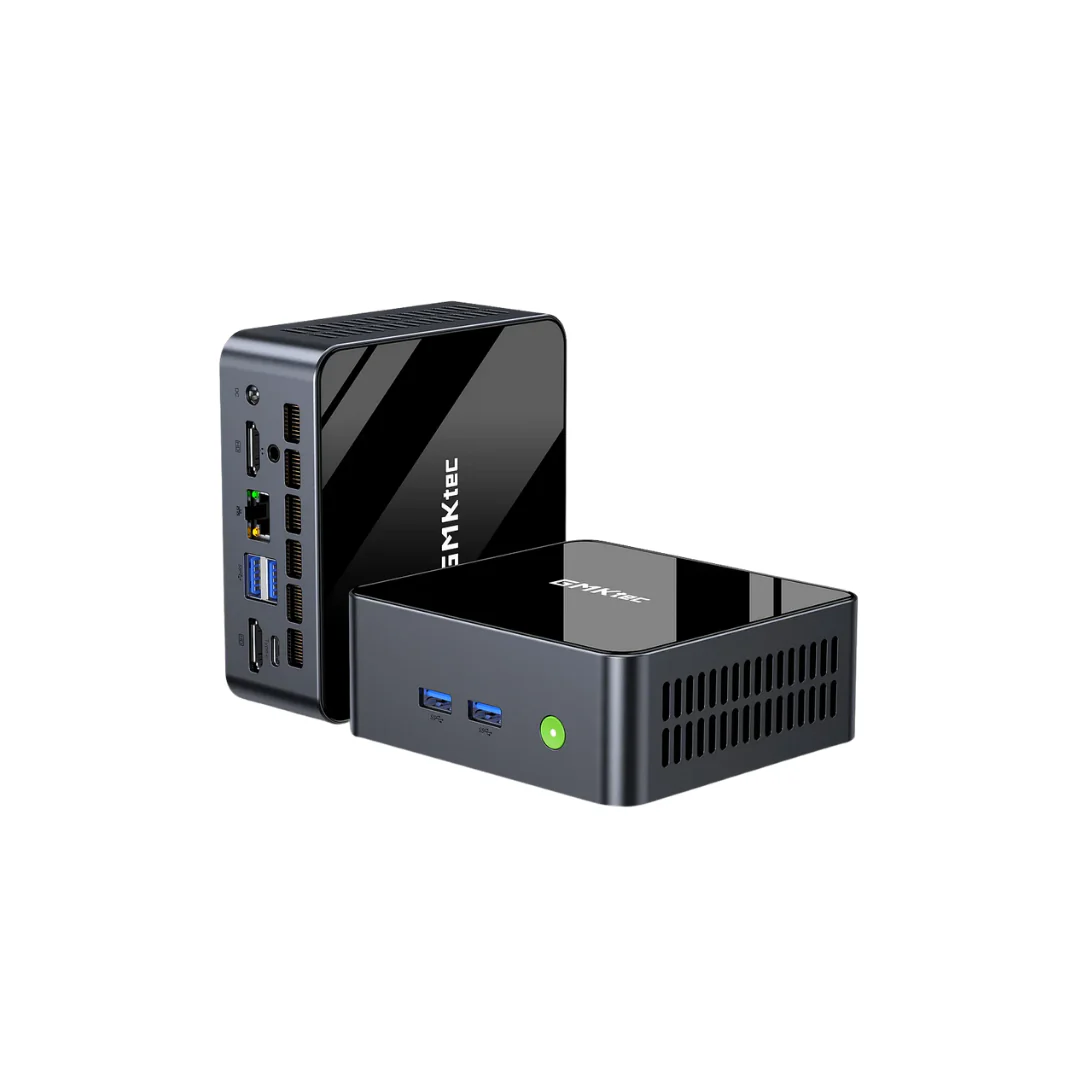

Model: GMKtec NucBox M3 Ultra
CPU Model: Intel® Core™ i7-12700H Processor
CPU: 12th Gen Intel® Core™ i7 Processor, 14 Cores, 20 Threads, Intel 7 process, Max Turbo Frequency up to 4.7GHz, 24MB Cache, TDP 45W
CPU Socket / Package: FCBGA1744 Package, 50 × 25 mm
GPU: Intel® Iris® Xe Graphics eligible, 96 Execution Units, up to 1.4GHz

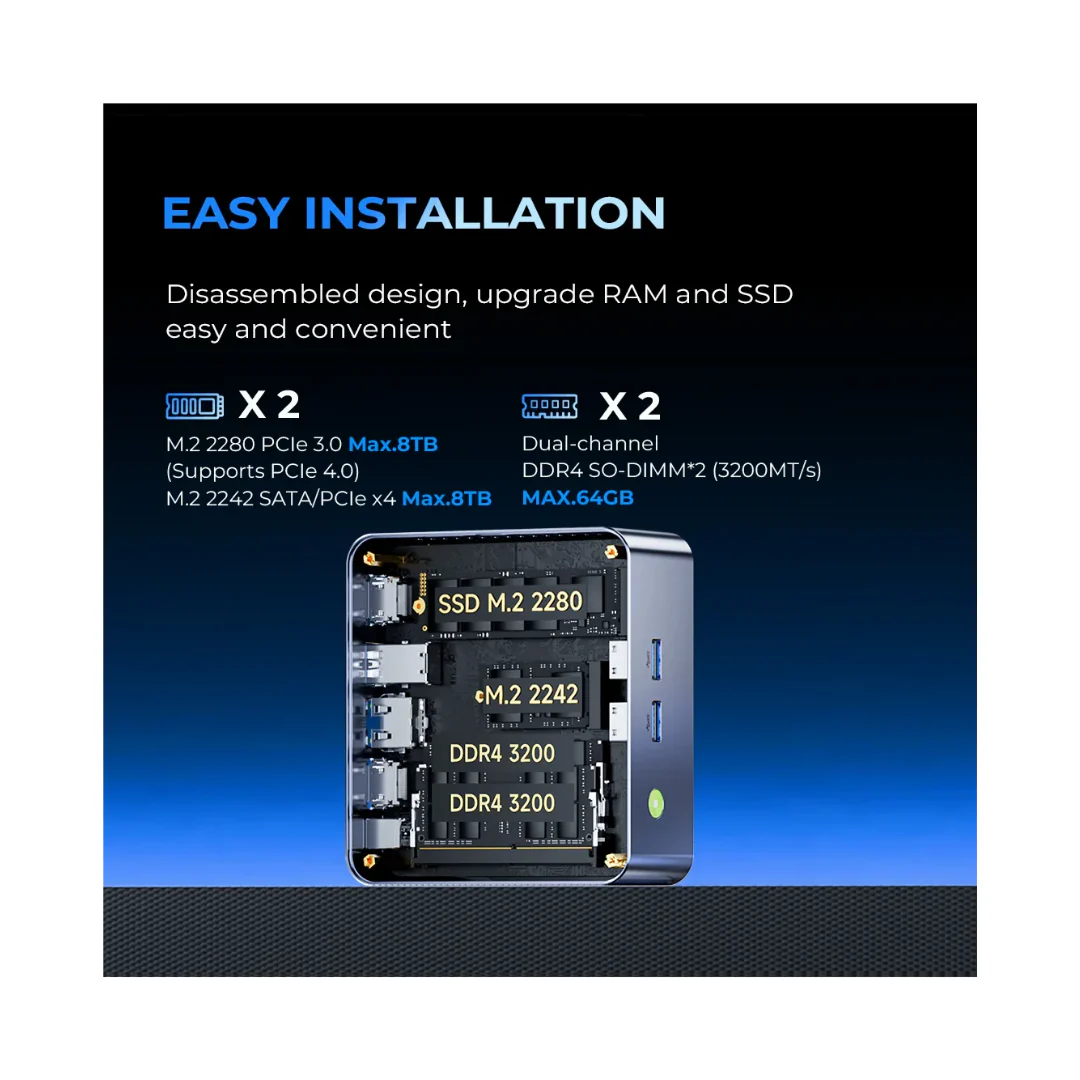

Memory (RAM): 2 × SO-DIMM Slots, 16GB / 32GB configurations, Supports up to 64GB
Storage (ROM): M.2 2280 NVMe SSD, 512GB / 1TB options
Graphics Output: Triple display output via 2 × HDMI + 1 × USB-C, supports up to 8K resolution
Network:
Wi-Fi 6 (Realtek 8852BE, up to 1201 Mbps)
Bluetooth 5.2
2.5G Ethernet LAN (Intel i226)

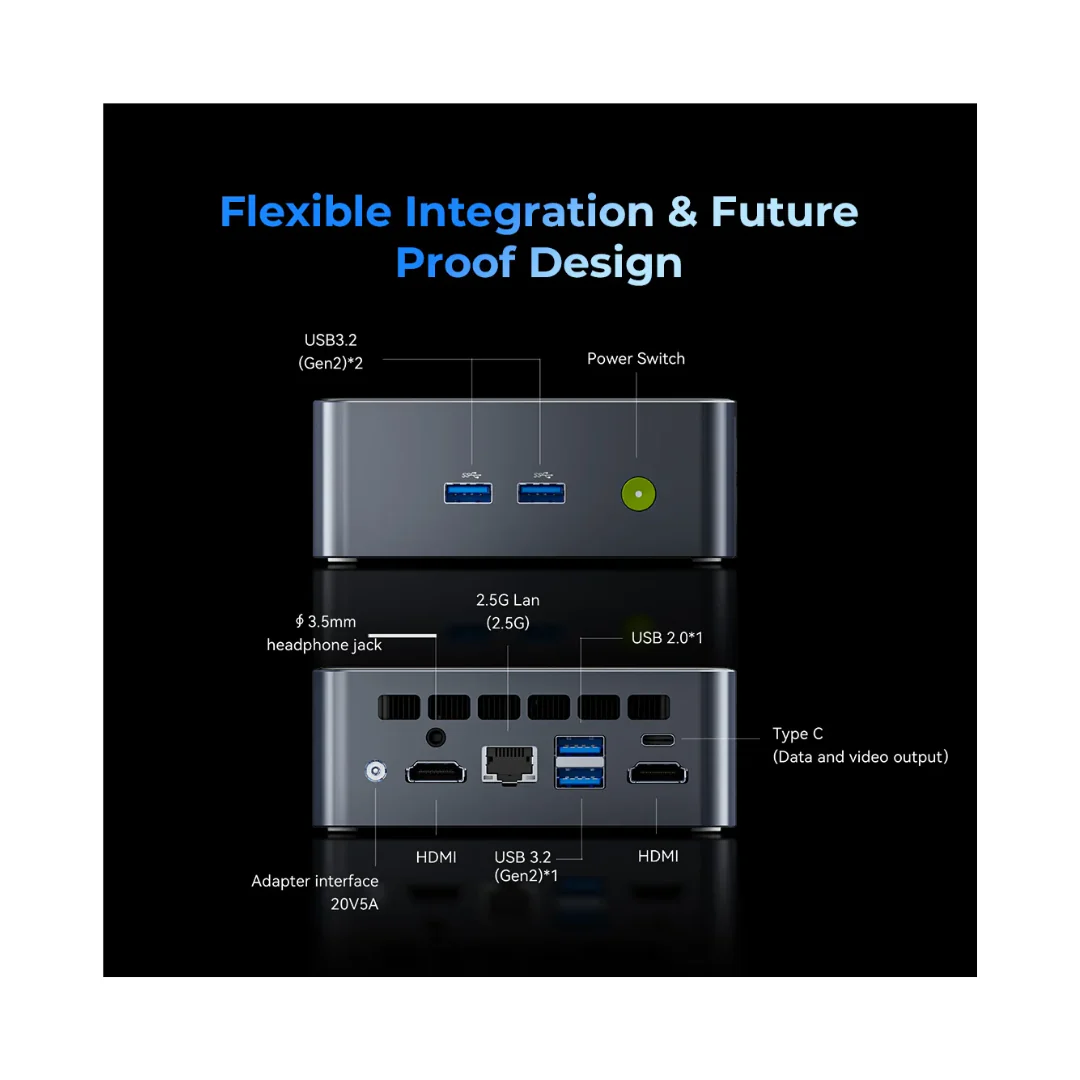

External Ports:
USB-A: 3 × USB 3.2 Gen2 (10Gbps) + 1 × USB 2.0
USB-C: 1 × Type-C (DisplayPort / Data)
HDMI: 2 × HDMI (up to 4K@60Hz)
Audio: 1 × 3.5mm CTIA Audio Jack
LAN: 1 × RJ45 2.5G Ethernet
Operating System: Windows 11 Pro
Chassis Dimensions: 114 × 106 × 42.5 mm
Color: Gray Black
Working Temperature: 0°C to 40°C
Warranty: 1-Year Limited Warranty
