GMKTEC M8 Pro R5 6650H | 16GB DDR5 | 512GB Nvme | Radeon 660M | WiFi 6E | Windows 11 Pro | HDMI | USB3.2 | USBC

Product image 1

GMKTEC M8 Pro R5 6650H | 16GB DDR5 | 512GB Nvme | Radeon 660M | WiFi 6E | Windows 11 Pro | HDMI | USB3.2 | USBC

GMKTEC M8 Pro R5 6650H | 16GB DDR5 | 512GB Nvme | Radeon 660M | WiFi 6E | Windows 11 Pro | HDMI | USB3.2 | USBC

  • CPU: AMD Ryzen PRO 6000 Series, 6 cores / 12 threads, TSMC 6nm FinFET process, base frequency: 3.3GHz, MAX 4.5GHz; 3MB L2 Cache / 16MB L3 Cache; Zen 3+ CPU architecture; Silent mode: 28W, Balanced mode: 35W, Performance mode: 40W (peak 40W)
  • CPU Model: AMD Ryzen™ 5 PRO 6650H
  • CPU Package: TSMC 6nm FinFET process
  • GPU: AMD Radeon™ 660M, 6 cores 1900 MHz; GPU max capacity 2GB
  • Memory: LPDDR5 6400MT/s 16GB onboard (dual-chip design, non-removable), theoretical max 64GB
  • Storage: PCIe 3.0 M.2 2280 SSD; 512GB / 1TB pre-installed; primary SSD slot next to WiFi module
  • Internal Expansion: 2×M.2 2280 PCIe 4.0×4 (max 8TB each, total 16TB); supports PCIe 3.0/4.0, not compatible with SATA drives
  • Graphics Output: HDMI + DP + USB4 triple-screen output, supports up to 8K resolution
  • Networking: WiFi 6E (802.11 a/b/g/n/ac/ax RZ616, up to 2.4Gbps), Bluetooth 5.2, Dual 2.5G LAN (RTL8125BG)
  • Power: DC IN 20V 5A (100W); built-in button cell battery

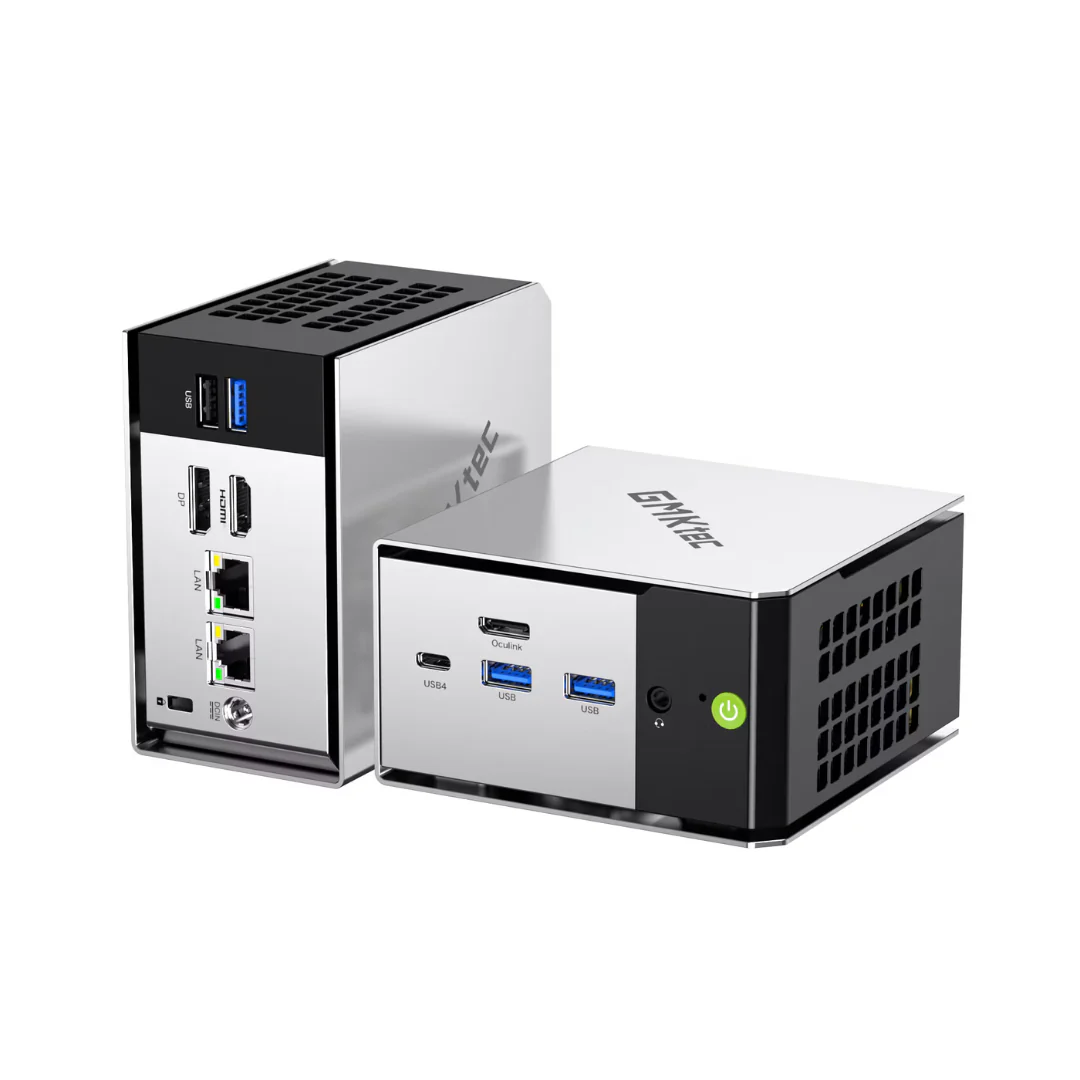

  • Front I/O: 2×USB 3.2 Gen2 (10Gbps), 1×OCulink (PCIe Gen4 ×4), 1×USB4 (full function, supports 40Gbps / PD3.0 100W input / DP1.4 4K@60Hz), 1×3.5mm Audio Jack (CTIA standard), 1×Power button (white LED indicator), 1×Reset button (system reset when powered on, CMOS clear when powered off)
  • Rear I/O: 1×USB 3.2 Gen2 (10Gbps), 1×USB 2.0 (480Mbps), 1×HDMI 2.0 (8K@60Hz), 1×DisplayPort 1.4 (8K@60Hz), 2×RJ45 LAN (2.5Gbps), 1×DC IN (5.5/2.5mm), 1×Security lock hole
  • YOU: Windows 11 Pro pre-installed; supports Linux and Ubuntu
  • Dimensions: 107 × 111 × 63 mm
  • Weight: Approx. 490g (bare unit); 1.7kg (package)
  • Package Contents: Power adapter, HDMI cable, User manual, Warranty card (no VESA mount included)
$476.23
GMKTEC M8 Pro R5 6650H | 16GB DDR5 | 512GB Nvme | Radeon 660M | WiFi 6E | Windows 11 Pro | HDMI | USB3.2 | USBC—
$476.23

Product Information

Shipping & Returns

Description

  • CPU: AMD Ryzen PRO 6000 Series, 6 cores / 12 threads, TSMC 6nm FinFET process, base frequency: 3.3GHz, MAX 4.5GHz; 3MB L2 Cache / 16MB L3 Cache; Zen 3+ CPU architecture; Silent mode: 28W, Balanced mode: 35W, Performance mode: 40W (peak 40W)
  • CPU Model: AMD Ryzen™ 5 PRO 6650H
  • CPU Package: TSMC 6nm FinFET process
  • GPU: AMD Radeon™ 660M, 6 cores 1900 MHz; GPU max capacity 2GB
  • Memory: LPDDR5 6400MT/s 16GB onboard (dual-chip design, non-removable), theoretical max 64GB
  • Storage: PCIe 3.0 M.2 2280 SSD; 512GB / 1TB pre-installed; primary SSD slot next to WiFi module
  • Internal Expansion: 2×M.2 2280 PCIe 4.0×4 (max 8TB each, total 16TB); supports PCIe 3.0/4.0, not compatible with SATA drives
  • Graphics Output: HDMI + DP + USB4 triple-screen output, supports up to 8K resolution
  • Networking: WiFi 6E (802.11 a/b/g/n/ac/ax RZ616, up to 2.4Gbps), Bluetooth 5.2, Dual 2.5G LAN (RTL8125BG)
  • Power: DC IN 20V 5A (100W); built-in button cell battery
  • Front I/O: 2×USB 3.2 Gen2 (10Gbps), 1×OCulink (PCIe Gen4 ×4), 1×USB4 (full function, supports 40Gbps / PD3.0 100W input / DP1.4 4K@60Hz), 1×3.5mm Audio Jack (CTIA standard), 1×Power button (white LED indicator), 1×Reset button (system reset when powered on, CMOS clear when powered off)
  • Rear I/O: 1×USB 3.2 Gen2 (10Gbps), 1×USB 2.0 (480Mbps), 1×HDMI 2.0 (8K@60Hz), 1×DisplayPort 1.4 (8K@60Hz), 2×RJ45 LAN (2.5Gbps), 1×DC IN (5.5/2.5mm), 1×Security lock hole
  • YOU: Windows 11 Pro pre-installed; supports Linux and Ubuntu
  • Dimensions: 107 × 111 × 63 mm
  • Weight: Approx. 490g (bare unit); 1.7kg (package)
  • Package Contents: Power adapter, HDMI cable, User manual, Warranty card (no VESA mount included)
