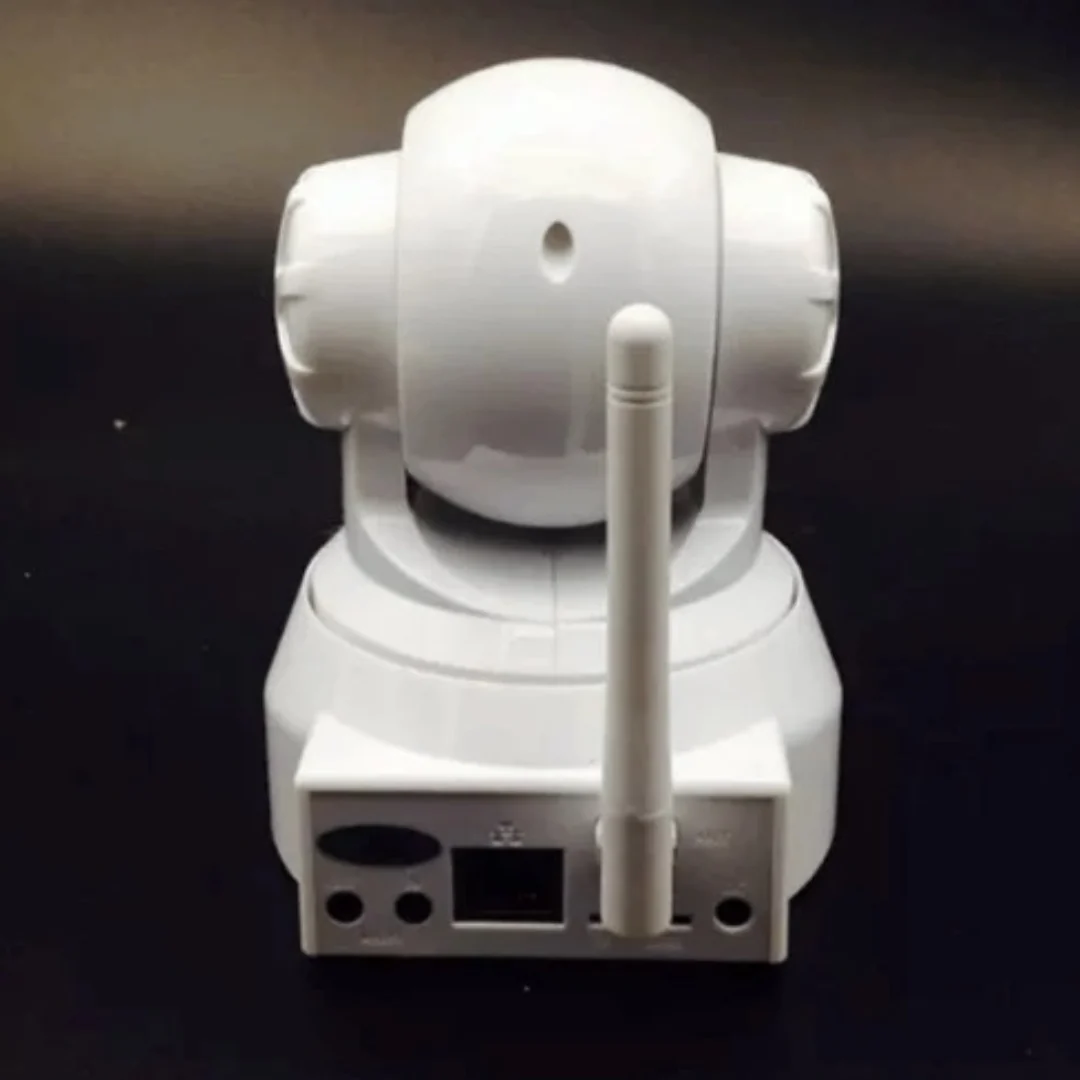

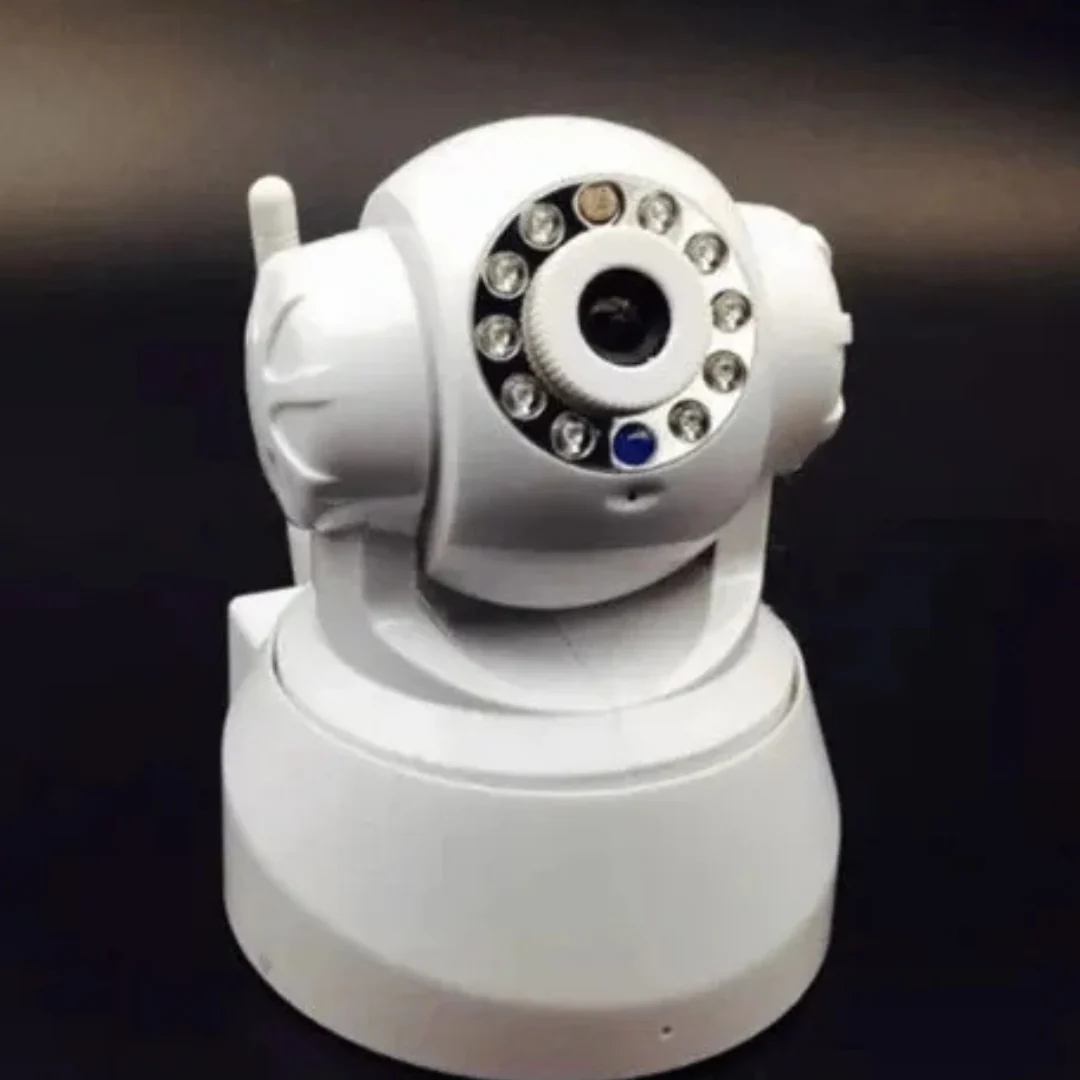

IP PT CAMERA XXC5030-EB
- IP Camera
- Model: XXC5030-E
- System: Embedded Linux OS
- User/Host Level: 3 levels: Administrator,Camera Control,Live View Only
- Online visitor: Support 4 visitors at the same time
- Image Sensor: 1/4inch 0.3MegaPixel Progressive Scan CMOS
- Sensor function: AWB,AGC,AE
- Sensor size: 3.840mm×2.880mm
- SNR: ≥50dB
- Minimum Illumination: 0.1Lux/F1.6(color mode),0.01Lux/F1.6(B&W mode)
- Lens: 3.6mm F1.6
- Nightvision: 10pcs 850nmΦ5mm IR LED,IR irradiation distance:10m
- Video: Encode format Motion-JPEG
- Image Resolution: VGA/QVGA
- Image adjustment: Contrast,brightness
- Audio Input: 1 Channel Internal MIC
- Audio Output: 1 Channel Line out(3.5mm phone jack)& Internal speaker(8Ω0.25W)
- Sampling frequency/Bit wide: 8KHz/16bit
- Encode format/Bit rate: ADPCM/32kbps
- Network Ethernet: 10Base-T / 100Base-TX, RJ45 connector
- Protocols: TCP/IP,HTTP,TCP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPnP,PPPoE,P2P etc
- Wlan: WiFi802.11b/g/n
- Pan & Tilt Rotation angle: Pan Range:0°-270°/355°,Tilt Range:0°-90°/120°
- Memory TF Card: Support max 32GB TF card
- Rated voltage: DC5±0.3V
- Power consumption: Typical:3.5W(IR LED turn on)/Max:7W
- Operating condition: Temperature:-10~50℃,humidity<90%
- Weight: 600g(Note:in kind prevail)
- Dimension:182×148×108mm(L×W×H)
Product Information
Product Information
Shipping & Returns
Shipping & Returns
IP PT CAMERA XXC5030-EB
IP PT CAMERA XXC5030-EB
- IP Camera
- Model: XXC5030-E
- System: Embedded Linux OS
- User/Host Level: 3 levels: Administrator,Camera Control,Live View Only
- Online visitor: Support 4 visitors at the same time
- Image Sensor: 1/4inch 0.3MegaPixel Progressive Scan CMOS
- Sensor function: AWB,AGC,AE
- Sensor size: 3.840mm×2.880mm
- SNR: ≥50dB
- Minimum Illumination: 0.1Lux/F1.6(color mode),0.01Lux/F1.6(B&W mode)
- Lens: 3.6mm F1.6
- Nightvision: 10pcs 850nmΦ5mm IR LED,IR irradiation distance:10m
- Video: Encode format Motion-JPEG
- Image Resolution: VGA/QVGA
- Image adjustment: Contrast,brightness
- Audio Input: 1 Channel Internal MIC
- Audio Output: 1 Channel Line out(3.5mm phone jack)& Internal speaker(8Ω0.25W)
- Sampling frequency/Bit wide: 8KHz/16bit
- Encode format/Bit rate: ADPCM/32kbps
- Network Ethernet: 10Base-T / 100Base-TX, RJ45 connector
- Protocols: TCP/IP,HTTP,TCP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPnP,PPPoE,P2P etc
- Wlan: WiFi802.11b/g/n
- Pan & Tilt Rotation angle: Pan Range:0°-270°/355°,Tilt Range:0°-90°/120°
- Memory TF Card: Support max 32GB TF card
- Rated voltage: DC5±0.3V
- Power consumption: Typical:3.5W(IR LED turn on)/Max:7W
- Operating condition: Temperature:-10~50℃,humidity<90%
- Weight: 600g(Note:in kind prevail)
- Dimension:182×148×108mm(L×W×H)
$10.05
IP PT CAMERA XXC5030-EB—
$10.05
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
- IP Camera
- Model: XXC5030-E
- System: Embedded Linux OS
- User/Host Level: 3 levels: Administrator,Camera Control,Live View Only
- Online visitor: Support 4 visitors at the same time
- Image Sensor: 1/4inch 0.3MegaPixel Progressive Scan CMOS
- Sensor function: AWB,AGC,AE
- Sensor size: 3.840mm×2.880mm
- SNR: ≥50dB
- Minimum Illumination: 0.1Lux/F1.6(color mode),0.01Lux/F1.6(B&W mode)
- Lens: 3.6mm F1.6
- Nightvision: 10pcs 850nmΦ5mm IR LED,IR irradiation distance:10m
- Video: Encode format Motion-JPEG
- Image Resolution: VGA/QVGA
- Image adjustment: Contrast,brightness
- Audio Input: 1 Channel Internal MIC
- Audio Output: 1 Channel Line out(3.5mm phone jack)& Internal speaker(8Ω0.25W)
- Sampling frequency/Bit wide: 8KHz/16bit
- Encode format/Bit rate: ADPCM/32kbps
- Network Ethernet: 10Base-T / 100Base-TX, RJ45 connector
- Protocols: TCP/IP,HTTP,TCP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPnP,PPPoE,P2P etc
- Wlan: WiFi802.11b/g/n
- Pan & Tilt Rotation angle: Pan Range:0°-270°/355°,Tilt Range:0°-90°/120°
- Memory TF Card: Support max 32GB TF card
- Rated voltage: DC5±0.3V
- Power consumption: Typical:3.5W(IR LED turn on)/Max:7W
- Operating condition: Temperature:-10~50℃,humidity<90%
- Weight: 600g(Note:in kind prevail)
- Dimension:182×148×108mm(L×W×H)
