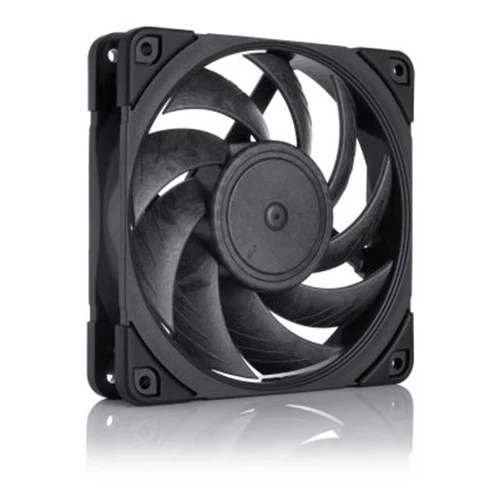

Noctua NF-A12x25 PWM Chromax.Black.Swap, Premium Quiet Fan, 4-Pin 120mm, Black
- Size 120x120x25 mm
- Mounting hole spacing 105x105 mm
- Connector & pin-configuration 4-pin PWM
- Cable length 1cm + 30cm NA-EC1 extension cable
- Bearing SSO2
- Blade geometry A-Series with Flow Acceleration Channels
- Frame technology AAO (Advanced Acoustic Optimisation)
- Material Sterrox® LCP
- Rotational speed (+/- 10%) 2000 RPM
- Min. rotational speed @ 20% PWM (+/-20%) 450 RPM
- Airflow 102,1 m³/h
- Acoustical noise 22,6 dB(A)
- Static pressure 2,34 mm H₂O
- Input power (typical) 1,2 W
- Input power (max.) 1,68 W
- Input current (typical) 0,1 A
- Input current (max.) 0,14 A
- Operating voltage 12 V
- Voltage PWM signal 5 V
- MTTF > 150.000 h
- Scope of delivery
- 4x NA-AVP1 chromax.black anti-vibration pads
- 4x NA-AVP1 chromax.blue anti-vibration pads
- 4x NA-AVP1 chromax.green anti-vibration pads
- 4x NA-AVP1 chromax.red anti-vibration pads
- 4x NA-AVP1 chromax.white anti-vibration pads
- 4x NA-AVP1 chromax.yellow anti-vibration pads
- 4x NA-AVP1 grey anti-vibration pads
- NA-AVG1 chromax.black anti-vibration gasket for water cooling radiators
- Fan screws
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Noctua NF-A12x25 PWM Chromax.Black.Swap, Premium Quiet Fan, 4-Pin 120mm, Black
Noctua NF-A12x25 PWM Chromax.Black.Swap, Premium Quiet Fan, 4-Pin 120mm, Black
- Size 120x120x25 mm
- Mounting hole spacing 105x105 mm
- Connector & pin-configuration 4-pin PWM
- Cable length 1cm + 30cm NA-EC1 extension cable
- Bearing SSO2
- Blade geometry A-Series with Flow Acceleration Channels
- Frame technology AAO (Advanced Acoustic Optimisation)
- Material Sterrox® LCP
- Rotational speed (+/- 10%) 2000 RPM
- Min. rotational speed @ 20% PWM (+/-20%) 450 RPM
- Airflow 102,1 m³/h
- Acoustical noise 22,6 dB(A)
- Static pressure 2,34 mm H₂O
- Input power (typical) 1,2 W
- Input power (max.) 1,68 W
- Input current (typical) 0,1 A
- Input current (max.) 0,14 A
- Operating voltage 12 V
- Voltage PWM signal 5 V
- MTTF > 150.000 h
- Scope of delivery
- 4x NA-AVP1 chromax.black anti-vibration pads
- 4x NA-AVP1 chromax.blue anti-vibration pads
- 4x NA-AVP1 chromax.green anti-vibration pads
- 4x NA-AVP1 chromax.red anti-vibration pads
- 4x NA-AVP1 chromax.white anti-vibration pads
- 4x NA-AVP1 chromax.yellow anti-vibration pads
- 4x NA-AVP1 grey anti-vibration pads
- NA-AVG1 chromax.black anti-vibration gasket for water cooling radiators
- Fan screws
$31.13
Noctua NF-A12x25 PWM Chromax.Black.Swap, Premium Quiet Fan, 4-Pin 120mm, Black—
$31.13
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
- Size 120x120x25 mm
- Mounting hole spacing 105x105 mm
- Connector & pin-configuration 4-pin PWM
- Cable length 1cm + 30cm NA-EC1 extension cable
- Bearing SSO2
- Blade geometry A-Series with Flow Acceleration Channels
- Frame technology AAO (Advanced Acoustic Optimisation)
- Material Sterrox® LCP
- Rotational speed (+/- 10%) 2000 RPM
- Min. rotational speed @ 20% PWM (+/-20%) 450 RPM
- Airflow 102,1 m³/h
- Acoustical noise 22,6 dB(A)
- Static pressure 2,34 mm H₂O
- Input power (typical) 1,2 W
- Input power (max.) 1,68 W
- Input current (typical) 0,1 A
- Input current (max.) 0,14 A
- Operating voltage 12 V
- Voltage PWM signal 5 V
- MTTF > 150.000 h
- Scope of delivery
- 4x NA-AVP1 chromax.black anti-vibration pads
- 4x NA-AVP1 chromax.blue anti-vibration pads
- 4x NA-AVP1 chromax.green anti-vibration pads
- 4x NA-AVP1 chromax.red anti-vibration pads
- 4x NA-AVP1 chromax.white anti-vibration pads
- 4x NA-AVP1 chromax.yellow anti-vibration pads
- 4x NA-AVP1 grey anti-vibration pads
- NA-AVG1 chromax.black anti-vibration gasket for water cooling radiators
- Fan screws
