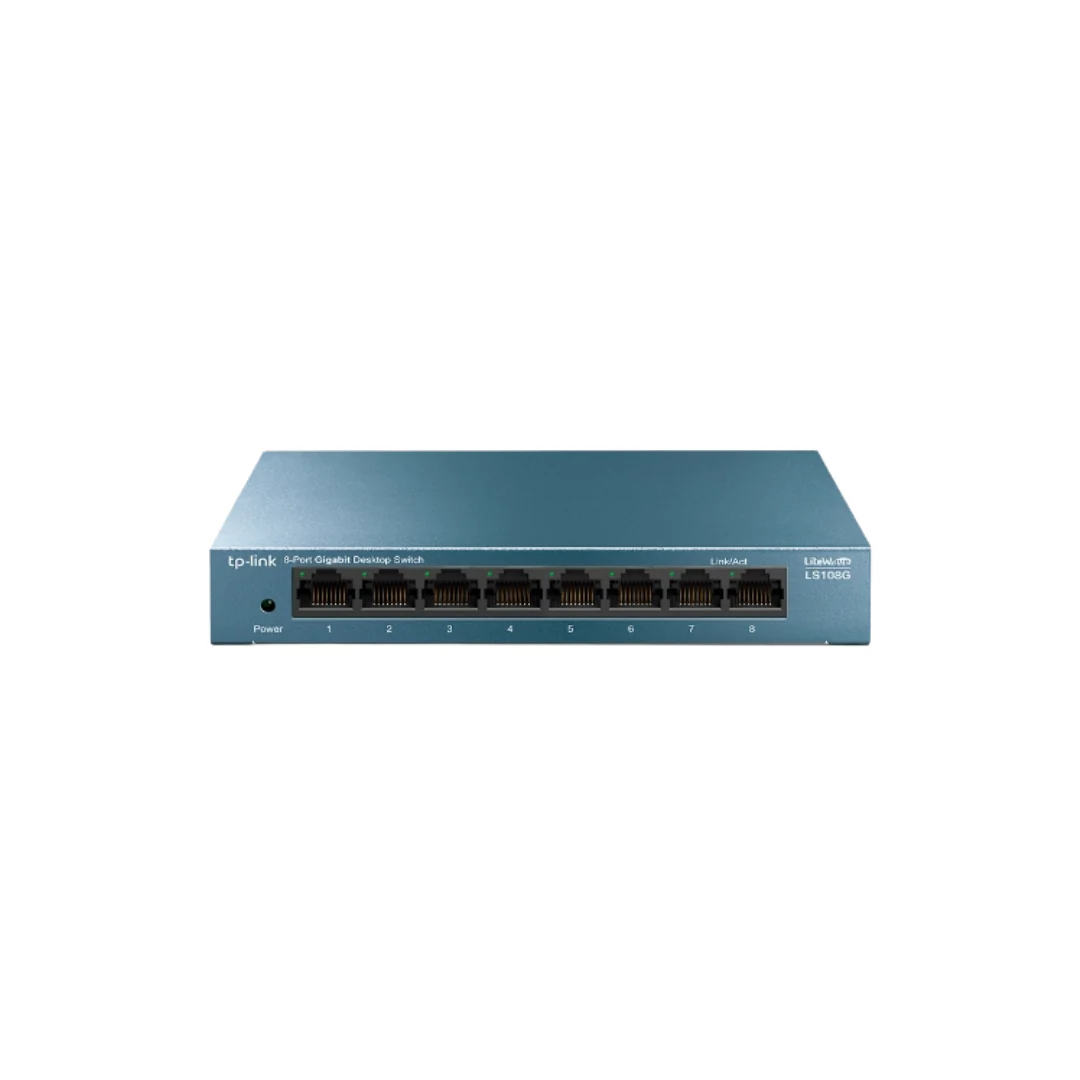

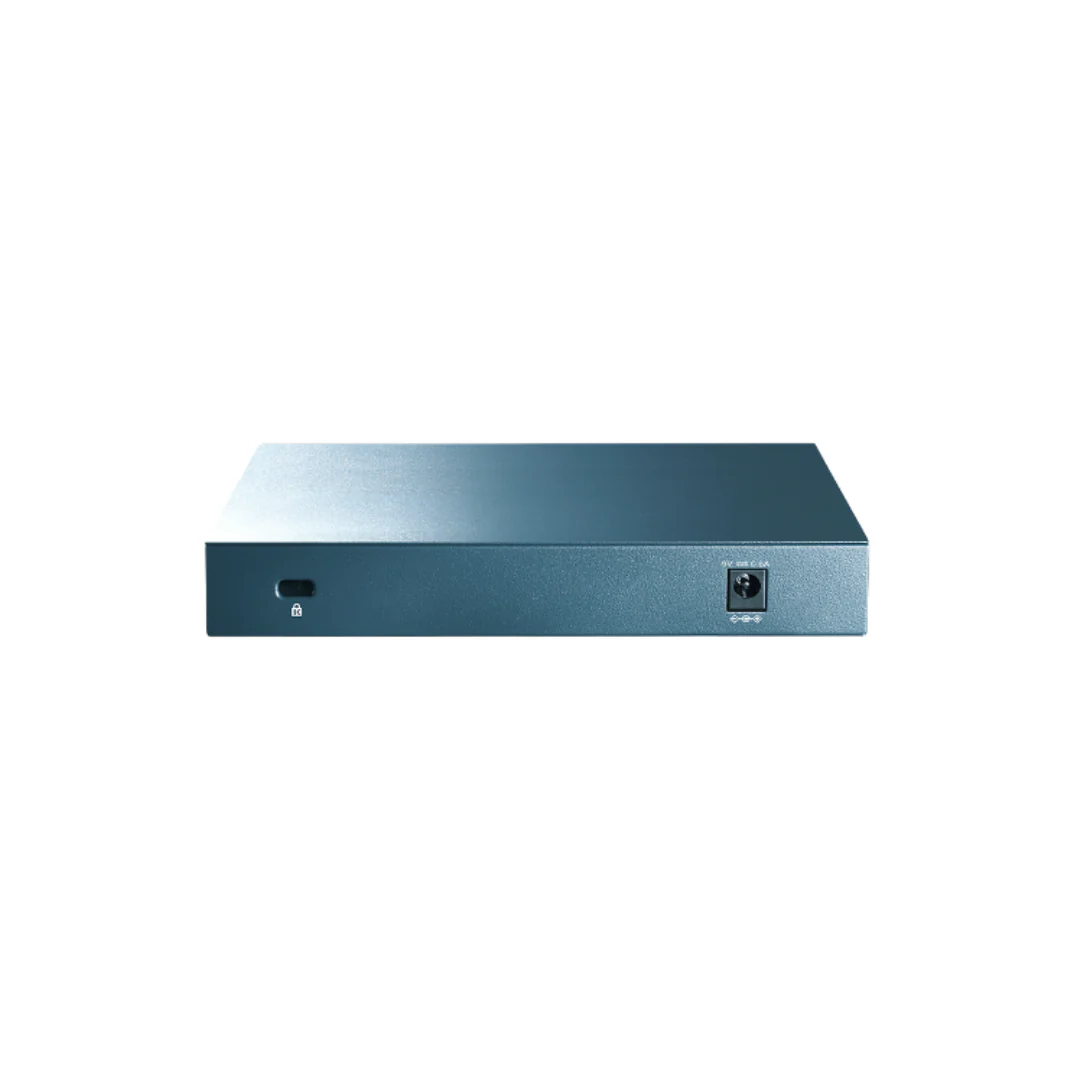

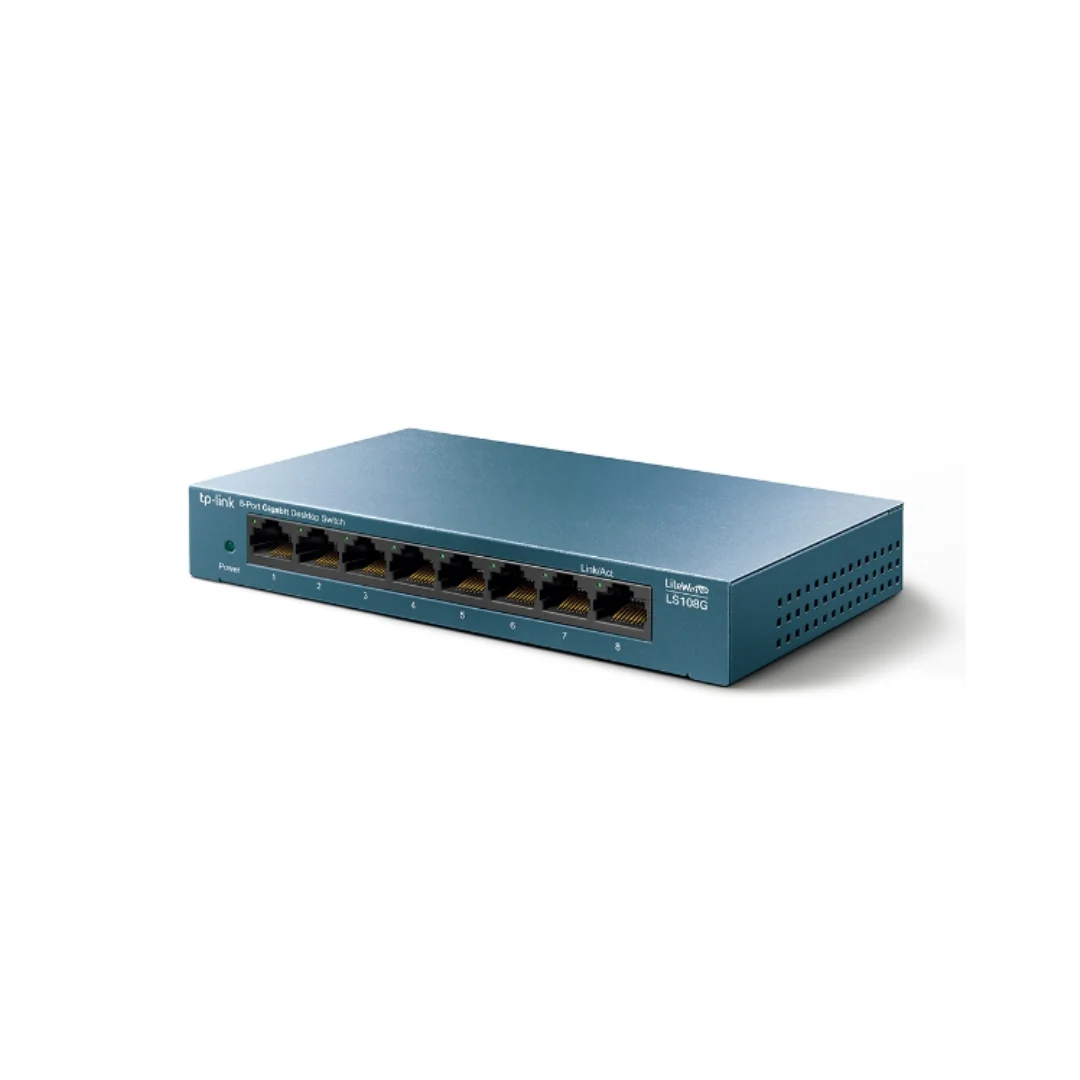

TP-Link LS108G 8-Port Gigabit Litewave Desktop Switch
Standards and Protocols: IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p
Interface: 8 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
Fan Quantity: Fanless
External Power Supply: External Power Adapter: • V1, V3: 9VDC / 0.6A • V2: 5VDC / 0.6A
LED: System Power Link/Act indicators per port built into each RJ-45 port
Dimensions ( W x D x H ): 6.2 x 3.9 x 1.0 in. (158 x 99.1x 25 mm)
Max. Power Consumption: 3.7W(220V/50Hz)
Max. Heat Dissipation: 12.617 Btu/hr
PERFORMANCE:
Packet Forwarding Rate: 11.9 Mpps
MAC Address: Table: 4K
Packet Buffer Memory: 1.5 Mb
Jumbo Frame: 16 KB
Package Content: 8-Port 10/100/1000Mbps Desktop Switch, Power Adapter, Installation Guide
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing
Product Information
Product Information
Shipping & Returns
Shipping & Returns
TP-Link LS108G 8-Port Gigabit Litewave Desktop Switch
TP-Link LS108G 8-Port Gigabit Litewave Desktop Switch
Standards and Protocols: IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p
Interface: 8 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
Fan Quantity: Fanless
External Power Supply: External Power Adapter: • V1, V3: 9VDC / 0.6A • V2: 5VDC / 0.6A
LED: System Power Link/Act indicators per port built into each RJ-45 port
Dimensions ( W x D x H ): 6.2 x 3.9 x 1.0 in. (158 x 99.1x 25 mm)
Max. Power Consumption: 3.7W(220V/50Hz)
Max. Heat Dissipation: 12.617 Btu/hr
PERFORMANCE:
Packet Forwarding Rate: 11.9 Mpps
MAC Address: Table: 4K
Packet Buffer Memory: 1.5 Mb
Jumbo Frame: 16 KB
Package Content: 8-Port 10/100/1000Mbps Desktop Switch, Power Adapter, Installation Guide
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Standards and Protocols: IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p
Interface: 8 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
Fan Quantity: Fanless
External Power Supply: External Power Adapter: • V1, V3: 9VDC / 0.6A • V2: 5VDC / 0.6A
LED: System Power Link/Act indicators per port built into each RJ-45 port
Dimensions ( W x D x H ): 6.2 x 3.9 x 1.0 in. (158 x 99.1x 25 mm)
Max. Power Consumption: 3.7W(220V/50Hz)
Max. Heat Dissipation: 12.617 Btu/hr
PERFORMANCE:
Packet Forwarding Rate: 11.9 Mpps
MAC Address: Table: 4K
Packet Buffer Memory: 1.5 Mb
Jumbo Frame: 16 KB
Package Content: 8-Port 10/100/1000Mbps Desktop Switch, Power Adapter, Installation Guide
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing
