HARDWARE FEATURES

Model: N300 Omada EAP110-Outdoor

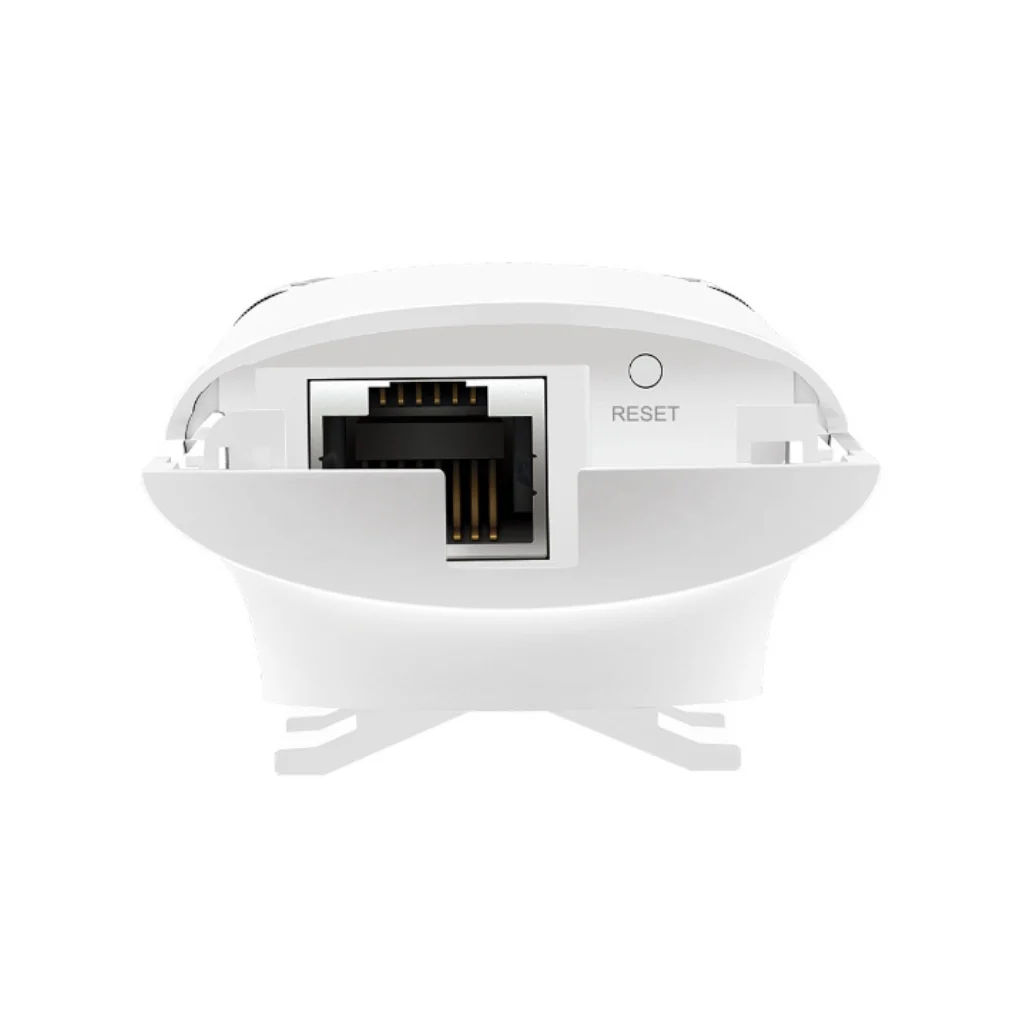

Interface: 1× Fast Ethernet (RJ-45) Port (Support Passive PoE)
Button: Reset
Power Supply: 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Max. Power Consumption: 3.12 W

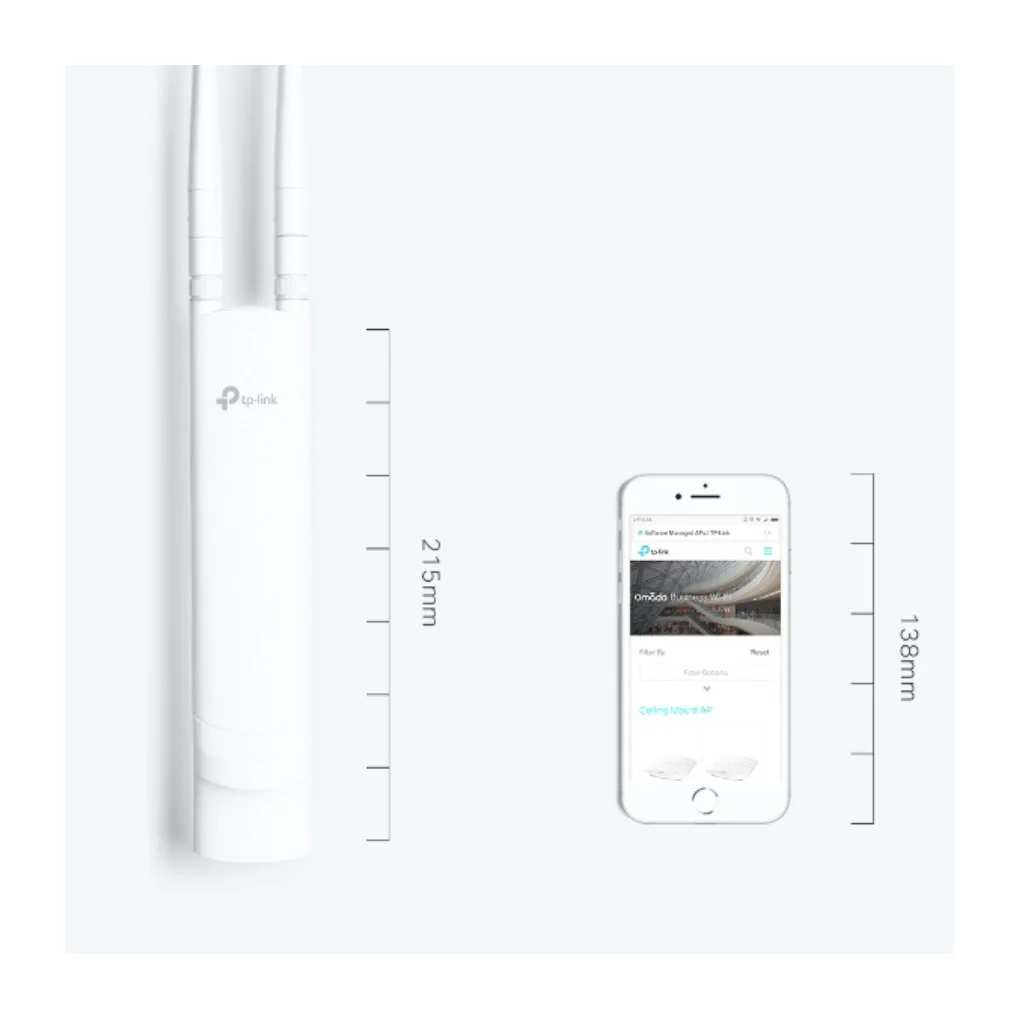

Dimensions ( W x D x H ): 1.8 × 1.1 × 8.5 in (46 × 26.7 × 214.9 mm)
Antenna: 2× 3 dBi External Omni waterproof
Weatherproof Enclosure: IP65

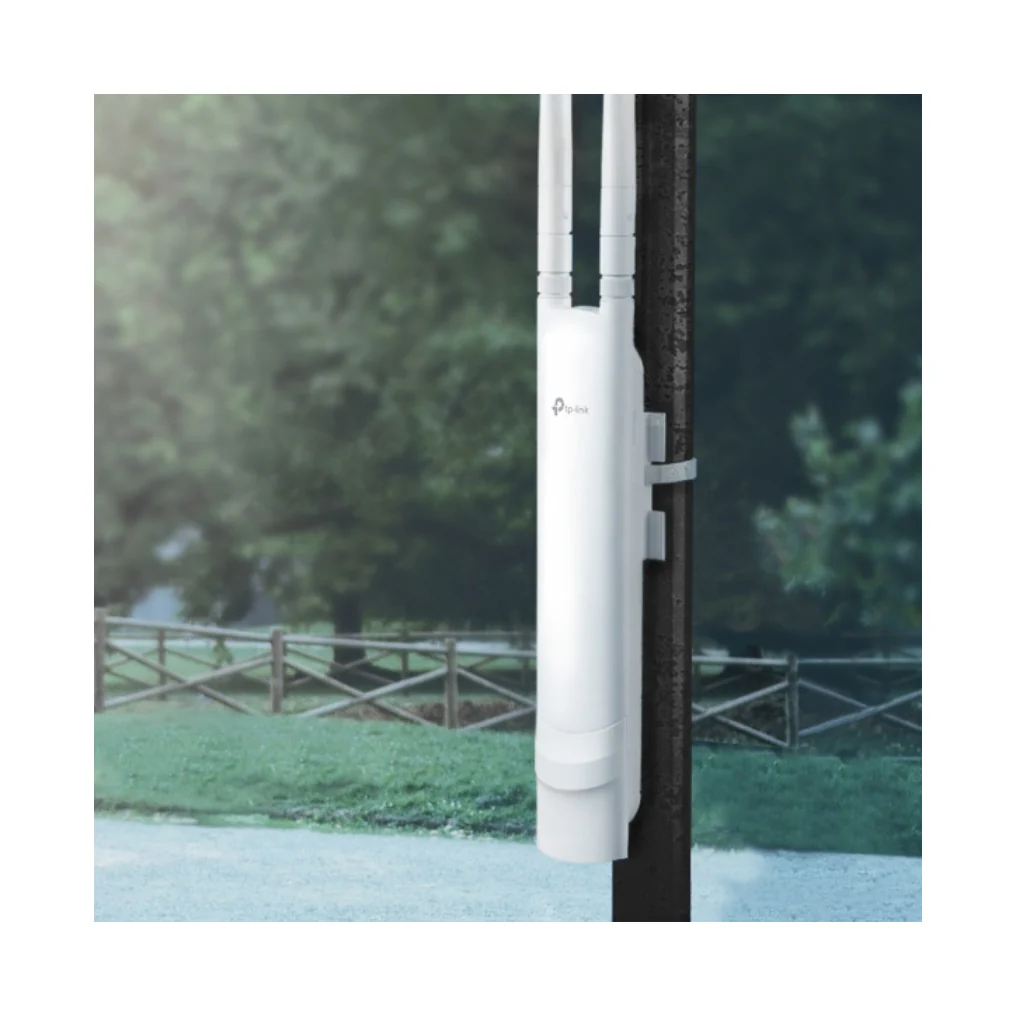

Mounting: Pole / Wall Mounting (Kits included)

WIRELESS FEATURES

Concurrent Clients: 100+**
Wireless Standards: IEEE 802.11n/g/b
Frequency: 2.4 GHz

Signal Rate:

• 11n: Up to 300 Mbps (dynamic)
• 11g: Up to 54 Mbps (dynamic)
• 11b: Up to 11 Mbps (dynamic)

Wireless Functions

• Multiple SSIDs（Up to 8 SSIDs）
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control （Adjust Transmit Power on dBm）
• Seamless Roaming(802.11r)
• QoS(WMM)
• Load Balance
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client

Wireless Security

• Captive Portal Authentication
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK

Transmission Power

• CE: ≤20 dBm (EIRP)
• FCC: ≤22 dBm
