ARDWARE FEATURES
Interface: Gigabit Ethernet (RJ-45) Port x 1 (Support IEEE802.3af or passive PoE)
Button: Reset
Power Supply: 802.3af PoE or passive PoE
Power Consumption: 12.6W
Dimensions:
-8.1 × 7.1 × 1.5 in
-(206 × 182 × 37 mm)
Antenna Type:
-Internal omni directional
-2.4GHz: 4dBi x 3
-5GHz: 5dBi x 2
Mounting: Ceiling mount or wall mount (mounting kit included)
Physical Security Lock: Yes
Hardware Watch Dog: Yes

WIRELESS FEATURES
Wireless Standards: IEEE 802.11ac/n/g/b/a
Frequency: 2.4GHz and 5GHz
Signal Rate:
-5GHz:Up to 867Mbps*
-2.4GHz:Up to 450Mbps*
Wireless Functions:
-Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
-Enable/Disable Wireless Radio
-Automatic Channel Assignment
-Transmit Power Control (Adjust Transmit Power on dBm)
-QoS(WMM)
-Seamless Roaming
-Band Steering
-Load Balance
-MU-MIMO*
-Airtime Fairness
-Beamforming
-Rate Limit
-Reboot Schedule
-Wireless Schedule
-Wireless Statistics based on SSID/AP/Client
Wireless Security:
-Captive Portal Authentication
-Access Control
-Wireless Mac Address Filtering
-Wireless Isolation Between Clients
-SSID to VLAN Mapping
-Rogue AP Detection
-802.1X Support
Transmission Power:
-≤24dBm(2.4GHz)
-≤22dBm(5GHz)

MANAGEMENT
EAP Controller Software: Yes
Email Alerts: Yes
LED ON/OFF Control: Yes
Management MAC Access Control: Yes
SNMP: v1,v2c
System Logging Local/Remote Syslog: Local/Remote Syslog
Telnet: Yes
Web-based Management: HTTP/HTTPS
L3 Management: Yes
Multi-site Management: Yes
Management VLAN: Yes

OTHERS
Certification: FCC, RoHS
Package Contents:

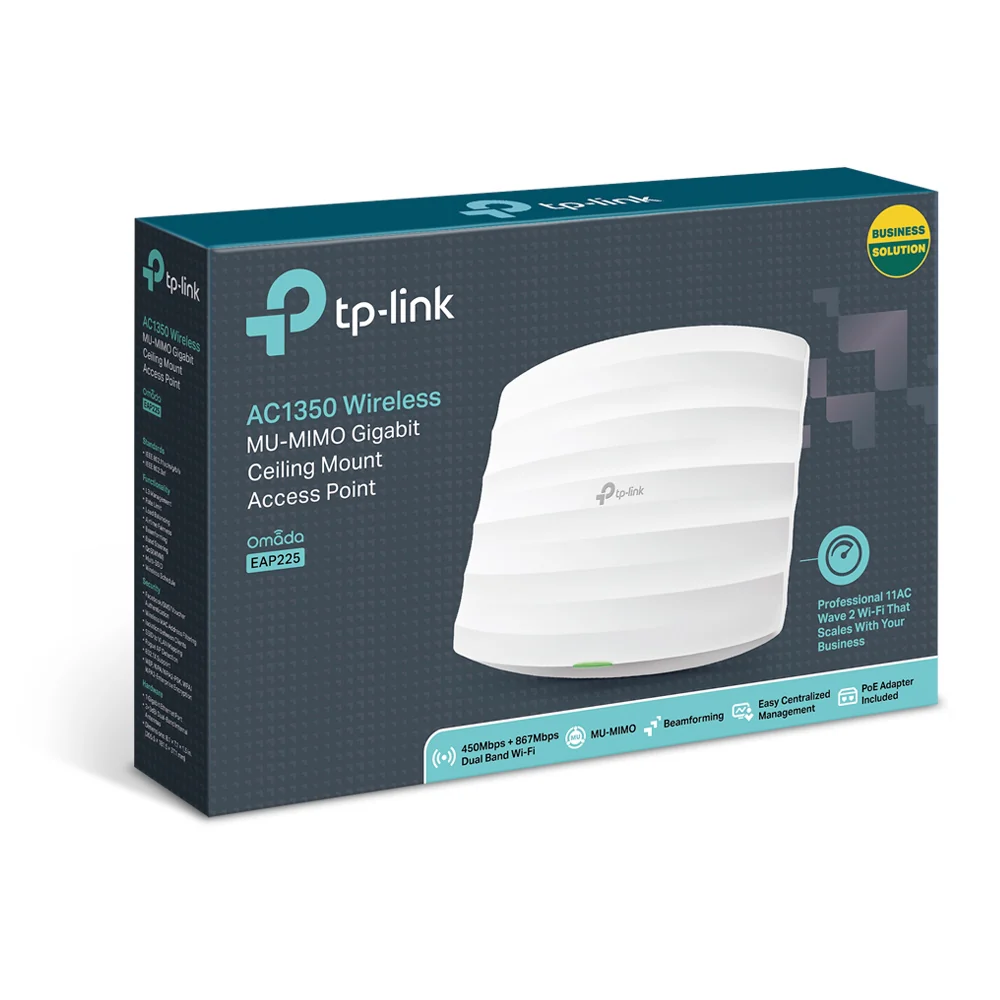

-AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP225
-Passive PoE Adapter
-Power Cord
-Mounting Kit
-Installation Guide
Environment:
-Operating Temperature: 0℃~60℃ (32℉~144℉)
-Storage Temperature: -40℃~70℃ (-40℉~158℉)
-Operating Humidity: 10%~90% non-condensing
-Storage Humidity: 5%~90% non-condensing
